US $0.50-$1.80 / Piece
Spiral target nozzle is designed for Marley crossflow flow cooling tower. It consists of two parts which are orifice cap and body with target diffuser.
Spiral target nozzles are installed in the right direction on the top of the Marley cooling tower fill to assure the max water distribution range.
The top diameter of the spiral target nozzle here is different, because different diameters can control different water flow speeds and water levels. The water in the water pipe flows into the round hole of the Marley cooling tower nozzle and flows out in a flower shape at the bottom.
The counterflow sprayer is an injection molded ABS spiral target nozzle, which is assembled from two parts: the main body and the hole cover. For use in cross flow cooling towers.
Uniform water distribution is a major factor in maintaining cooling tower efficiency. SARA's spiral target nozzles ensure even distribution of hot water to the filling block. The nozzle adopts high temperature resistance and non-clogging design.
Improving the efficiency of cooling towers is critical to optimizing industrial processes. Our spiral target cross flow nozzles are precision engineered to meet this need.
These nozzles are designed to provide a fine, even spray pattern that ensures optimal water coverage over the tower's fill media, promoting efficient heat exchange and maximizing cooling efficiency. The spiral structure enhances water dispersion, minimizing the risk of uneven cooling and potential equipment damage.
Focused on durability and reliability, our nozzles are constructed from high-quality materials to ensure long-term performance even in demanding environments. Its user-friendly design facilitates installation and maintenance, saving you time and resources.
Improve cooling tower performance with our spiral cross-flow nozzles. Trust in our expertise and experience to provide you with the highest quality Spiral Target Crossflow Nozzles. Explore our range today and experience the difference in efficiency and reliability.
There are different top diameters of spiral target nozzles, because the different diameters can control the different water flow speed and water level. The water inflow in the water pipe arrive to the Marley cooling tower nozzle round hole and outflow from the bottom flower shape.

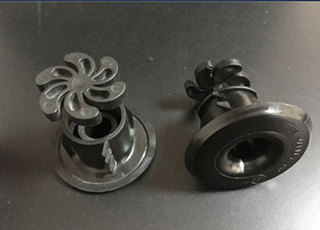

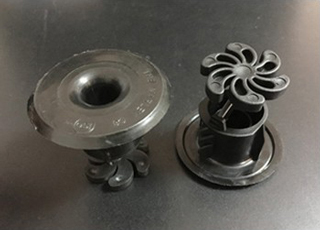

Two nozzles

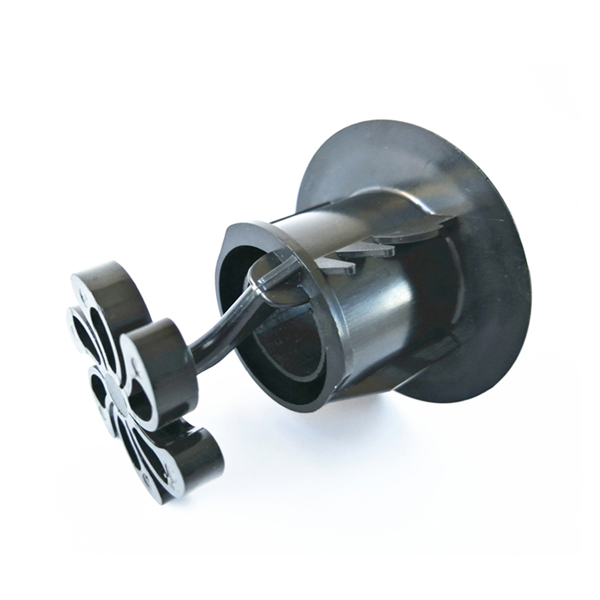

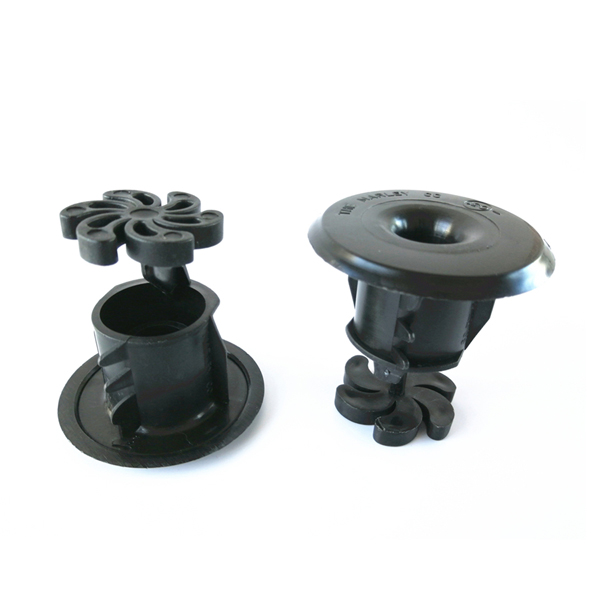

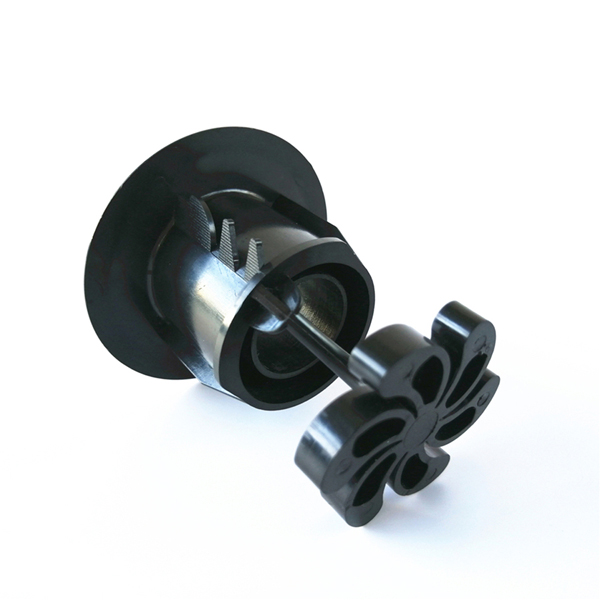

Spiral nozzle

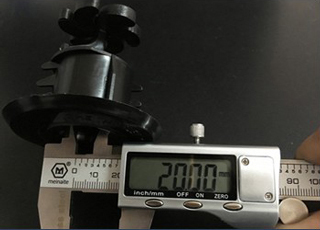

20mm nozzle

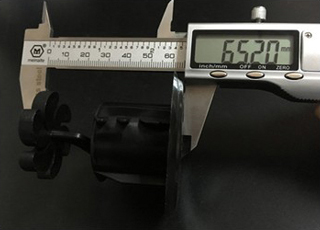

6520mm nozzle
Specification Spiral Target Crossflow Nozzle Diameter Material
13mm,16mm,20mm,23mm,24mm,29mm Polypropylene
Features
Easy installation
Excellent resistance
High mechanical strength
Application
The application range of Spiral target nozzles are:
Larger industrial wood
Concrete cooling towers
Fiberglass cooling towers
FAQ Q. How about quality of spiral target nozzles?
A. Quality is the same as your spiral target nozzle.
Shippment Packaging: Spiral target nozzles are packaged by woven bag. Delivery: We ships Spiral target nozzles by air.
Conclusion
If you replace spiral target nozzles to Marley crossflow flow cooling tower, our spiral target nozzles maybe are best choice for you.
